Today, we would like to introduce the “Triaxial Vibration Measurement Sensor 3093D7 (100mV/g).”
Click the image above to go to the blog's main page
The Dytran Series 3093D7 is a case-separated Triaxial IEPE accelerometer with a sensitivity range of 100 mV/g. The total weight is 14 grams. Featuring a ceramic shear sensing element housed in a lightweight titanium housing, the design of the 3093D7 incorporates an industry-standard 4-pin side connector and 10-32 stud mounting capabilities. The device is sealed to ensure reliable operation even in high humidity and dirty environments, and additional electrical isolation is provided to prevent EMI/ground loop interference

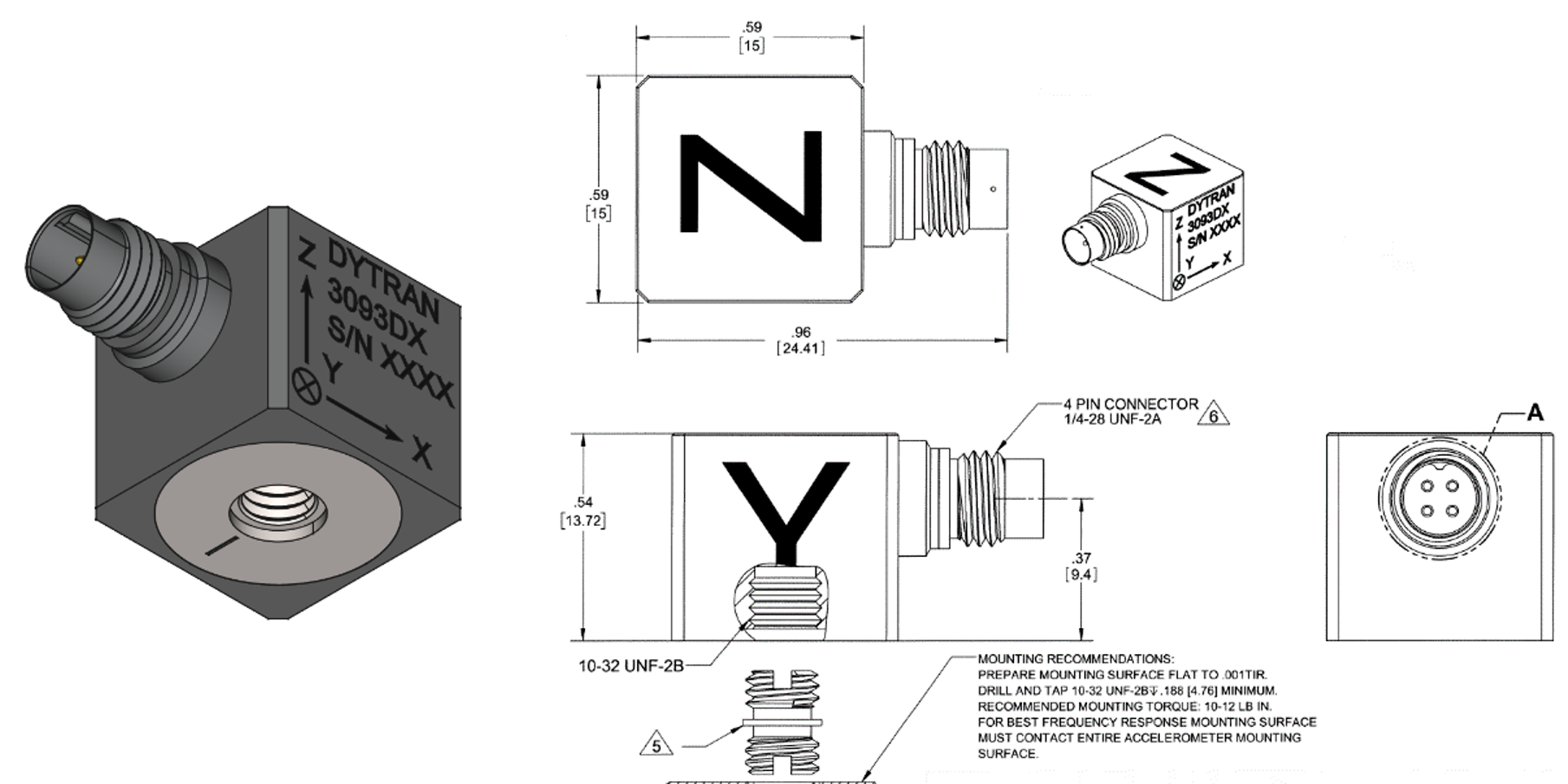

3093D7 Datasheet (Click to view)
Please check the specifications of the 3093D7 model in the table below.
| Sensor Type | Triaxial Accelerometer | Output Signal Type | IEPE |
| Sensitivity (mV/g) | 100[5%] | Acceleration Range (g pk) | 50 |
| Frequency Range (Hz) | 0.6~5,000[5%] | Weight (gram) | 14 |
| Housing Material | Titanium | Seal | Hermetic |
| Connector, Position | Side | Operating Temperature (°C) | -51~+107 |
| Connector, Type | 4-pin 1/4-28 | Mounting | 10-32 tapped hole |
| Electrical Isolation | Case Isolation (10 GΩ)6200 |
Shock Max. | 1,000 g peak |
Please check below for other vibration accelerometer models in the 3093D series.
3093D3 (10 mV/g, 500g measurement range)
3093D6 (50 mV/g, 100g measurement range)
3093D7 (100 mV/g, 50g measurement range)
