Today, we would like to introduce the compact IEPE accelerometers 3225F1 and 3225F2, which are used in electronics, semiconductor equipment, defense, aviation, and automotive industries.
Click the image above to go to the blog's main page
1. Features of the 3225F1 Vibration Sensor

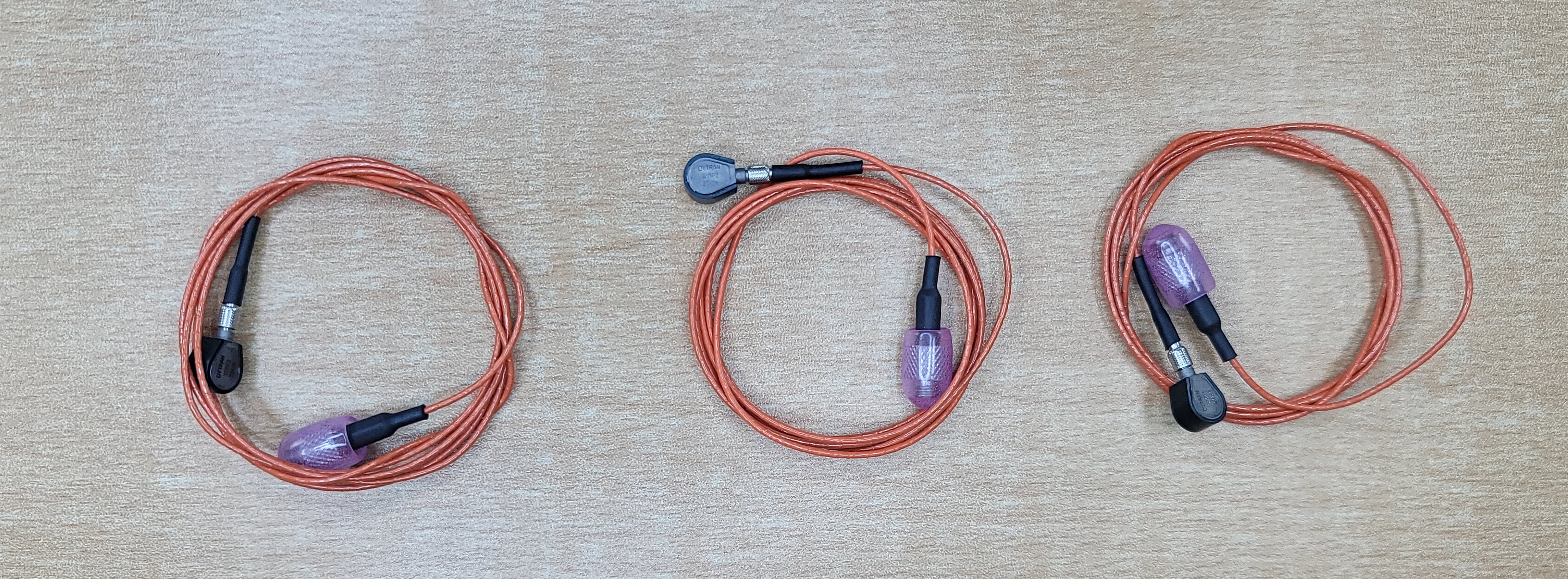

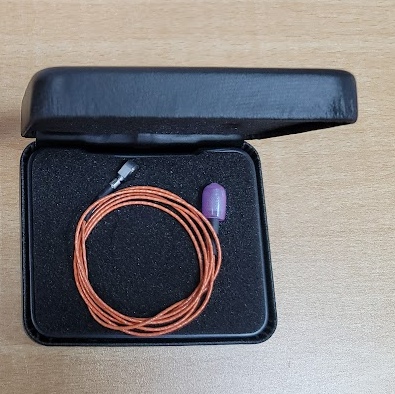

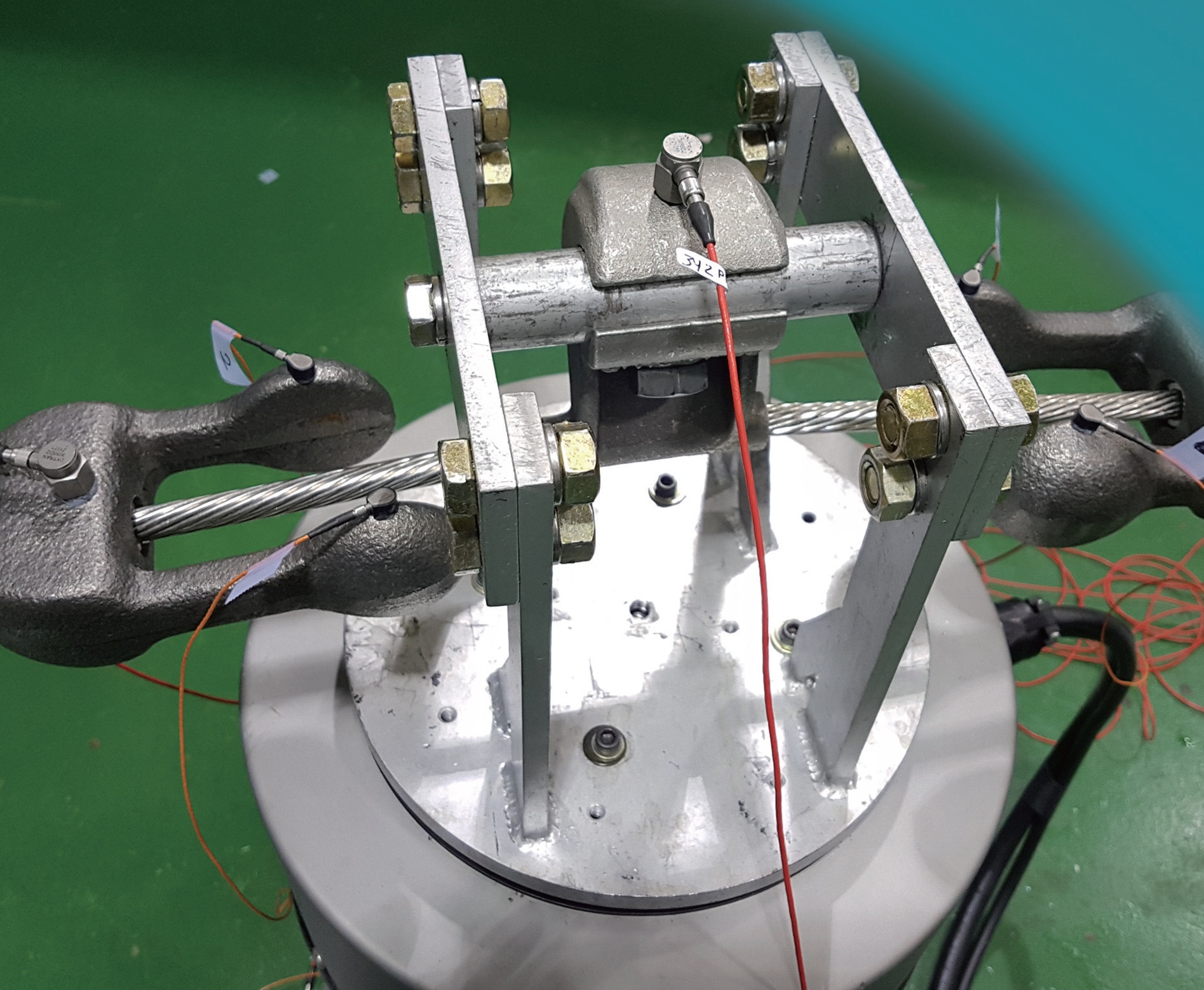

The 3225F1 is an ultra-compact, IEPE, high-sensitivity teardrop-shaped sensor. Featuring low outgassing, this model is sealed and includes a 90cm detachable cable. While originally designed for vibration testing and modal analysis of PC boards and other small objects, it can also be utilized for high-temperature combustion/engine test bench vibration testing, NVH (Noise, Vibration, Harshness), and testing of electronic and semiconductor equipment, defense, aviation, automotive, and aircraft.
2. 3225F1 Specification
Please refer to the table below for the 3225F1 specification.
| Sensor Type | Single Axle Accelerometer | Output Signal Type | IEPE |
| Sensitivity (mV/g) | 10 | Acceleration Range (g pk) | 500 |
| Frequency Range (Hz) | 1.6~10,000[10%] | Weight (gram) | 0.8 |
| Housing Material | Titanium | Seal | Hermetic |
| Connector, Position | Side | Operating Temperature (°C) | -55~+125 |
| Connector, Type | 3-56 | Mounting | Adhesive |
| Electrical Isolation | - | Shock Max. | 5,000 g pk |
You can download the datasheet for the 3225F1 by clicking below.
3. Features of the 3225F2 Vibration Sensor

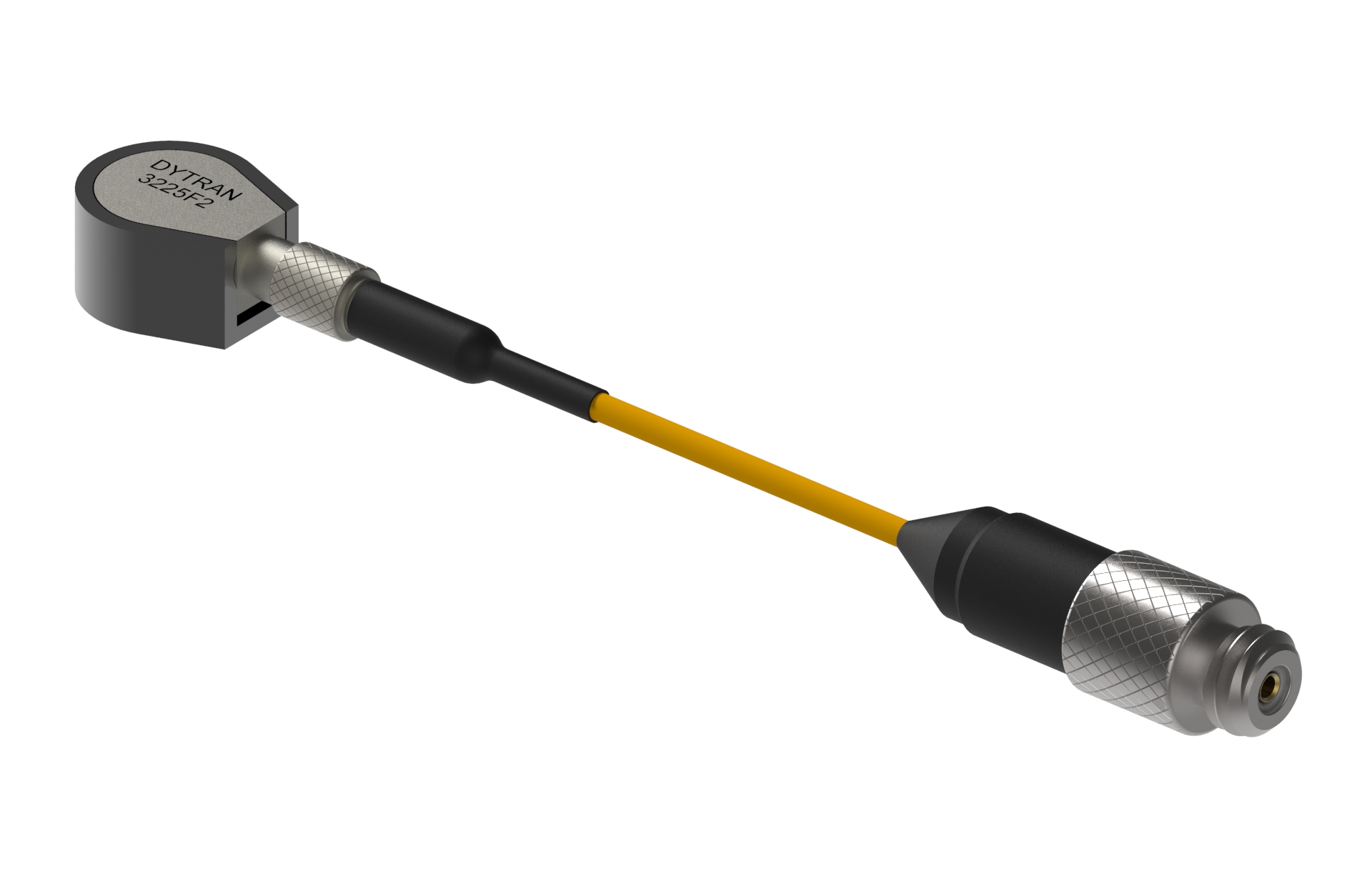

The 3225F2 sensor adds a Ground Isolation function to the 3225F1 sensor. It is a compact sensor with excellent electrical isolation capabilities that allows for vibration measurement in user-specified environments, suitable for environmental testing, resonance frequency detection testing using vibration exciters, and performance testing of aircraft, semiconductor equipment, electronic components, and automobiles.
Currently classified as a Special model, orders are limited to a minimum of 10 units.
Click below to download the datasheet for the 3225F2.
