The Dytran by HBM 3913A model is a sensor and cable-separated triaxial IEPE accelerometer used for modal and structural analysis testing, noise, NVH testing, product performance testing, high-frequency vibration measurement of various electric motors, and general-purpose triaxial vibration measurement.
Click the image above to go to the blog's main page

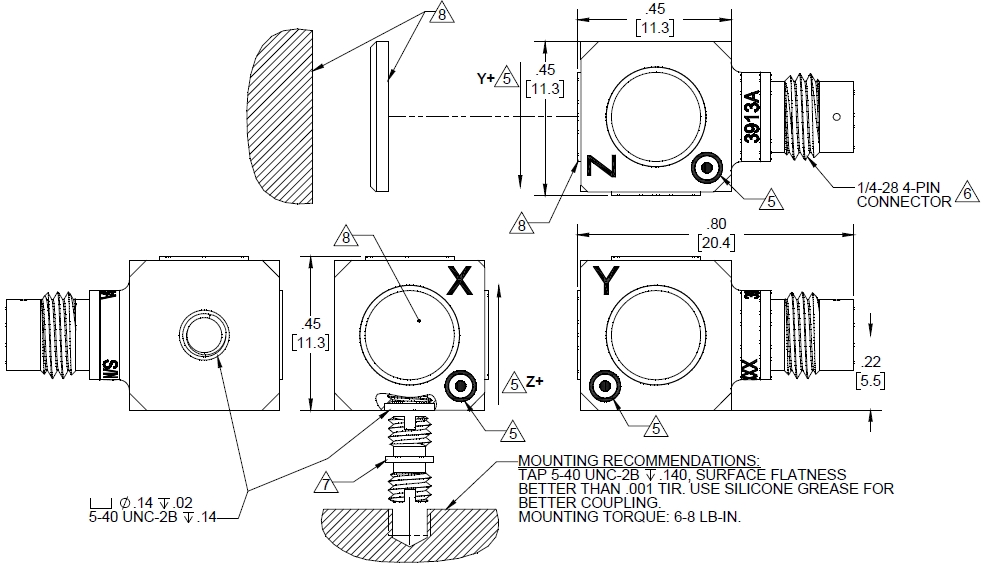

The Dytran Series 3913A is a case- and cable-separated triaxial IEPE accelerometer with a sensitivity range of 10 mV/g. The total weight is 6.3 grams. Featuring a ceramic shear sensing element housed in a lightweight titanium housing, the 3913A's design incorporates an industry-standard 4-pin side connector and 5-40 stud mounting capabilities. The device is sealed to ensure reliable operation even in high humidity and dirty environments, and is capable of vibration measurements up to 13 kHz (+/- 5%) or 15 kHz (+/- 10%).
The 3913A triaxial accelerometer is widely used in the measurement of automobiles, motors, heavy equipment, ships, various semiconductor facilities, aircraft, and defense equipment.
3913A Datasheet (Click to view)
Please check the specifications of the 3913A model in the table below.
| Sensor Type | Triaxial Accelerometer | Output Signal Type | IEPE |
| Sensitivity (mV/g) | 10[+/- 10%] | Acceleration Range (g pk) | 500 |
| Frequency Range (Hz) | 1~13,000[+/-5%] | Weight (gram) | 6.2 |
| Housing Material | Titanium | Seal | Hermetic |
| Connector, Position | Side | Operating Temperature (°C) | -55~+121 |
| Connector, Type | 4-pin 1/4-28 | Mounting | 5-40 tapped hole |
| Electrical Isolation | - | Shock Max. | 5,000 g peak |
