Today, we would like to introduce the "1-axis high-sensitivity (1V/g) vibration measuring sensor 3100D24".
Click the image above to go to the blog's main page

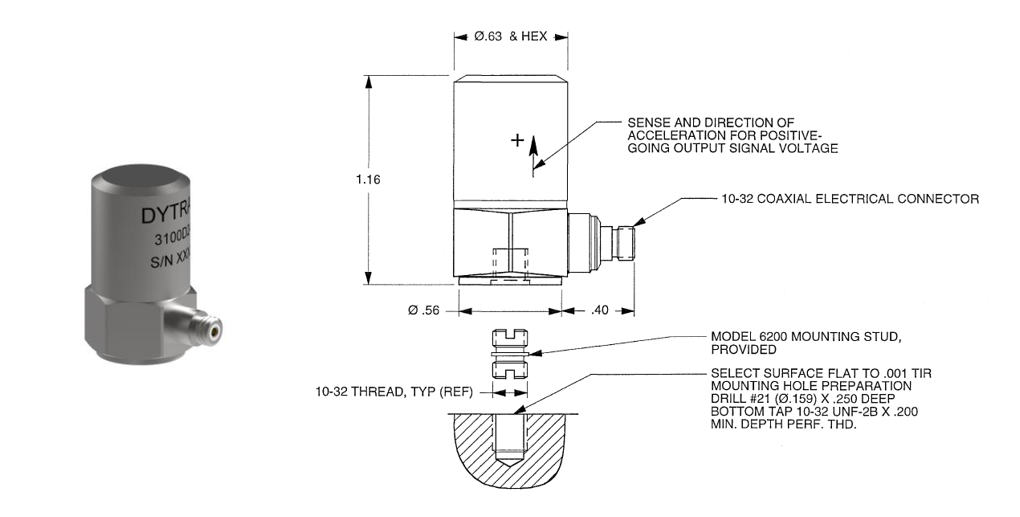

The Dytran 3100D24 (ultra-high (1 v/g) sensitivity version) consists of hermetically sealed, base-isolated IEPE accelerometers designed for vibration measurements in harsh environments.
The Dytran 3100D24 is a compact yet ultra-high-sensitivity sensor capable of measurements starting from 1 Hz or lower. Additionally, it can be used at high temperatures exceeding 120 degrees Celsius, making it suitable for high-temperature, low-vibration measurement environments. This sensor is used for vibration measurement in applications such as automobiles and seats, building vibrations, electronic equipment, semiconductor equipment, ships, and heavy industry.
Please check the 3100D24 specifications in the table below.
| Sensor Type | Single Axis Accelerometer | Output Signal Type | IEPE |
| Sensitivity (mV/g) | 1,000.0 | Acceleration Range (g pk) | 5.0 |
| Frequency Range (Hz) | 0.5~5,000 [10%] | Weight (gram) | 55.0 |
| Housing Material | Ti | Seal | Hermetic |
| Connector, Position | Side | Operating Temperature (°C) | -51~+121 |
| Connector, Type | 10-32 Coaxial | Mounting | 10-32 Tapped hole |
| Electrical Isolation | - | Shock Max. | 200gpk |
Dytran 3100D24 Datasheet (Click to view)
Please check below for other vibration accelerometer models of similar size.
3055F2 (5 mV/g, 1,000g 측정 범위)
3055F3 (10 mV/g, 500g 측정 범위) : 3055D1, 3055D10
3055F4 (20 mV/g, 250g 측정 범위) : 3055D5, 3055D9
3055F5 (50 mV/g, 100g 측정 범위) : 3055D4, 3055D8
3055F6 (100 mV/g, 50g 측정 범위) : 3055D2, 3055D7
3055F7 (200 mV/g, 25g 측정 범위) : 3055D6, 3055D13
3055F8 (500 mV/g, 10g 측정 범위) : 3055D3, 3055D14
3100D24 (1,000 mV/g, 5g 측정 범위)
