Dytran, Inc. of the United States released the 3055F model in 2024.

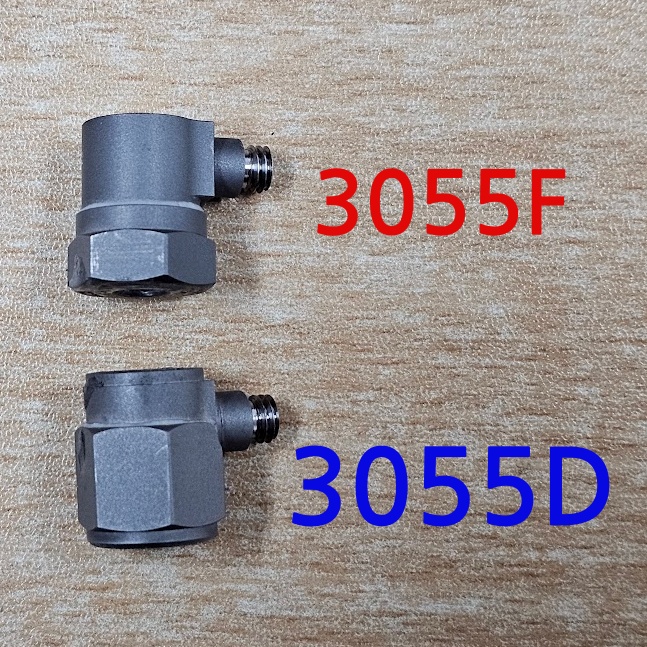

The 3055F models were developed to replace the 3055D model, and a feature to desensitize electromagnetic waves has been added to the existing general and high-temperature 3055D models.
Click the image above to go to the blog's main page
The Dytran Series 3055F models are wide-bandwidth single-axis vibration accelerometers used for modal analysis, environmental testing, semiconductor lines, automotive vibration, marine, aviation and defense testing, vibration control, and general vibration monitoring. In other words, they feature a wide measurement frequency range, environmental performance capable of measuring up to +163°C, and base isolation, making them suitable for a wide range of applications.
Please check the changes from the 3055D series to the 3055F series models in the table below before placing an order.
| Measurement Range |
Sensitivity | 3055F (Operating temperature: -55 ~ +163) |
3055D (Operating temperature: -55 ~ +121/+107) |
3055D (Operating temperature: -55 ~ +163) |
| 1,000 g | 5 mV/g | 3055F2 | ||
| 500 g | 10 mV/g | 3055F3 | 3055D1 | 3055D10 |
| 250 g | 20 mV/g | 3055F4 | 3055D5 | 3055D9 |
| 100 g | 50 mV/g | 3055F5 | 3055D4 | 3055D8 |
| 50 g | 100 mV/g | 3055F6 | 3055D2 | 3055D7 |
| 25 g | 200 mV/g | 3055F7 | 3055D6 | 3055D13 |
| 10 g | 500 mV/g | 3055F8 | 3055D3 | 3055D14 |
Clicking on the 3055F models will take you to a blog where you can download the data sheets.
